HSB-090/092

Brief Description HSB-092 wrapped bronze bearing is made of tin-bronze CuSn8 that is of high density, its surface is punched with oil apertures by certain angle and density therefore its easier to form an oil film when the bushing works. It has good anti-fatigue and load, anti-erosion anti-abrasion and load capacity. The products are widely applied in conditions of heavy load but low running velocity, such as on agricultural, buiding and engineering machines.



Chemical Composition

Part No Material Cu Sn P Pb Zn
HSB-090 CuSn8 91.3% 8.5% 0.2% / /
HSB-092 CuSn8 91.3% 8.5% 0.2% / /

Material Characteristics

Max. Load Capacity P
Static Load N/mm2 120
Dynamic Load N/mm2 40
Max. Speed V
HSB-090 m/s 2.0
E92 m/s >2.5
Max. PV Value N/mm2·m/s 2.8
Tensile Strength N/mm2·m/s 450
Yiled Point N/mm2·m/s 250
Hardness HB 90-120
Elongation   40%
Coefficient of Friction μ 0.08~0.25
Operation Temperature Range -100~200
Thermal Conductivity W/(m · k) 60
Coefficient of Thermal HSB-2pansion k-1 15×10-6

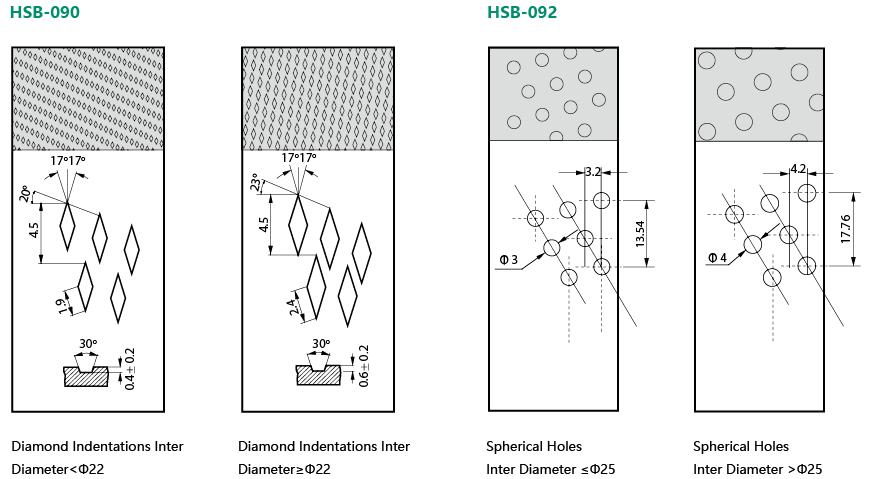

Oil Indentations/Holes
